driver_sensors_types.h File Reference

The driver_sensors_types.h file contains sensor state structs and error definitions. More...

#include <stdint.h>

Include dependency graph for driver_sensors_types.h:

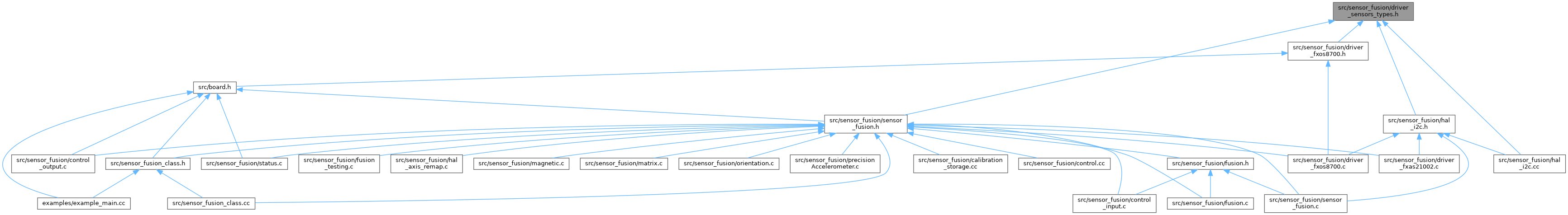

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	registerwritelist_t
	This structure defines the Write command List. More...
struct	registerReadlist_t
	This structure defines the Read command List. More...
struct	registerDeviceInfo_t
	This structure defines the device specific info required by register I/O. More...

Macros
#define	SENSOR_MAX_REGISTER_COUNT   128 /* As per 7-Bit address. */
#define	__END_WRITE_DATA__
#define	__END_READ_DATA__
#define	__END_WRITE_CMD__

Typedefs
typedef enum EWriteFlags	EWriteFlags_t
typedef void(*	registeridlefunction_t) (void *userParam)
	This is the register idle function type.

Enumerations
enum	EWriteFlags { WRITE_OVERWRITE = 0 , WRITE_MASK = 1 }
enum	ESensorErrors {   SENSOR_ERROR_NONE = 0 , SENSOR_ERROR_INVALID_PARAM , SENSOR_ERROR_BAD_ADDRESS , SENSOR_ERROR_INIT ,   SENSOR_ERROR_WRITE , SENSOR_ERROR_READ }

Detailed Description

The driver_sensors_types.h file contains sensor state structs and error definitions.

Definition in file driver_sensors_types.h.

Macro Definition Documentation

__END_READ_DATA__

#define __END_READ_DATA__

Value:

    {                                     \
        .readFrom = 0xFFFF, .numBytes = 0 \
    }

Definition at line 54 of file driver_sensors_types.h.

__END_WRITE_CMD__

#define __END_WRITE_CMD__

Value:

    {                                    \
        .writeTo = 0xFFFF, .numBytes = 0 \
    }

Definition at line 60 of file driver_sensors_types.h.

__END_WRITE_DATA__

#define __END_WRITE_DATA__

Value:

    {                                 \
        .writeTo = 0xFFFF, .value = 0 \
    }

Definition at line 48 of file driver_sensors_types.h.

SENSOR_MAX_REGISTER_COUNT

#define SENSOR_MAX_REGISTER_COUNT   128 /* As per 7-Bit address. */

Definition at line 45 of file driver_sensors_types.h.

Typedef Documentation

registeridlefunction_t

typedef void(* registeridlefunction_t) (void *userParam)

This is the register idle function type.

Definition at line 90 of file driver_sensors_types.h.

Enumeration Type Documentation

ESensorErrors

enum ESensorErrors

Definition at line 34 of file driver_sensors_types.h.

EWriteFlags

enum EWriteFlags

Definition at line 27 of file driver_sensors_types.h.
