The hal_i2c.h file declares low-level interface functions for reading and writing sensor registers using I2C. More...

#include <stdint.h>
#include <stdbool.h>
#include "driver_sensors_types.h"

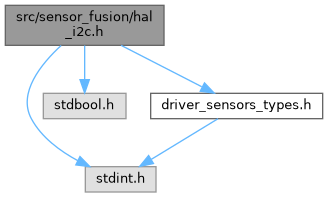

Include dependency graph for hal_i2c.h:

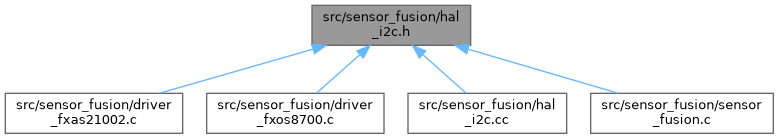

This graph shows which files directly or indirectly include this file:

Macros
#define	I2C_ERROR_OK (0)

Functions
bool	I2CInitialize (int pin_sda, int pin_scl)
	Initialize the I2C system at max clock rate supported by sensors. pin_sda and pin_scl indicate the pin numbers to which the I2C SDA and SCL lines of the sensors are connected. Pass -1 to use the default Arduino pins.

bool	I2CReadByte (uint8_t address, uint8_t reg, uint8_t *destination)

bool	I2CReadBytes (uint8_t address, uint8_t reg, uint8_t *destination, int num_bytes)

bool	I2CWriteByte (uint8_t address, uint8_t reg, uint8_t value)

bool	I2CWriteBytes (uint8_t address, uint8_t reg, const uint8_t *value, unsigned int num_bytes)

int8_t	Sensor_I2C_Write_List (registerDeviceInfo_t devInfo, uint16_t slaveAddress, const registerwritelist_t pRegWriteList)
	Write register data to a sensor.

int32_t	Sensor_I2C_Read (registerDeviceInfo_t devInfo, uint16_t slaveAddress, const registerReadlist_t pReadList, uint8_t *pOutBuffer)
	Read register data from a sensor.

int32_t	Sensor_I2C_Read_Register (registerDeviceInfo_t devInfo, uint16_t peripheralAddress, uint8_t offset, uint8_t length, uint8_t pOutBuffer)

Detailed Description

The hal_i2c.h file declares low-level interface functions for reading and writing sensor registers using I2C.

Definition in file hal_i2c.h.

Macro Definition Documentation

◆ I2C_ERROR_OK

#define I2C_ERROR_OK (0)

Definition at line 32 of file hal_i2c.h.

Function Documentation

◆ I2CInitialize()

bool I2CInitialize	(	int	pin_sda,
		int	pin_scl
	)

Initialize the I2C system at max clock rate supported by sensors. pin_sda and pin_scl indicate the pin numbers to which the I2C SDA and SCL lines of the sensors are connected. Pass -1 to use the default Arduino pins.

Returns true if successful, false if problem initializing I2C.

Definition at line 37 of file hal_i2c.cc.

◆ Sensor_I2C_Read()

int32_t Sensor_I2C_Read	(	registerDeviceInfo_t *	devInfo,
		uint16_t	slaveAddress,
		const registerReadlist_t *	pReadList,
		uint8_t *	pOutBuffer
	)

Read register data from a sensor.

Parameters

[in]	pCommDrv	pointer to the I2C ARM driver to use
[in]	devInfo	The I2C device number and idle function.
[in]	slaveAddress	the I2C slave address to read from
[in]	pReadList	a list of one or more register addresses and lengths to read
[in]	pOutBuffer	a pointer of sufficient size to contain the requested read data

Returns: returns the execution status of the operation using ESensorErrors

Definition at line 177 of file hal_i2c.cc.

◆ Sensor_I2C_Read_Register()

int32_t Sensor_I2C_Read_Register	(	registerDeviceInfo_t *	devInfo,
		uint16_t	peripheralAddress,
		uint8_t	offset,
		uint8_t	length,
		uint8_t *	pOutBuffer
	)

Definition at line 204 of file hal_i2c.cc.

◆ Sensor_I2C_Write_List()

int8_t Sensor_I2C_Write_List	(	registerDeviceInfo_t *	devInfo,
		uint16_t	slaveAddress,
		const registerwritelist_t *	pRegWriteList
	)

Write register data to a sensor.
