driver_fxos8700.h File Reference

Describes the fxos8700 driver interface and structures. More...

#include <stdint.h>
#include "driver_sensors_types.h"

Include dependency graph for driver_fxos8700.h:

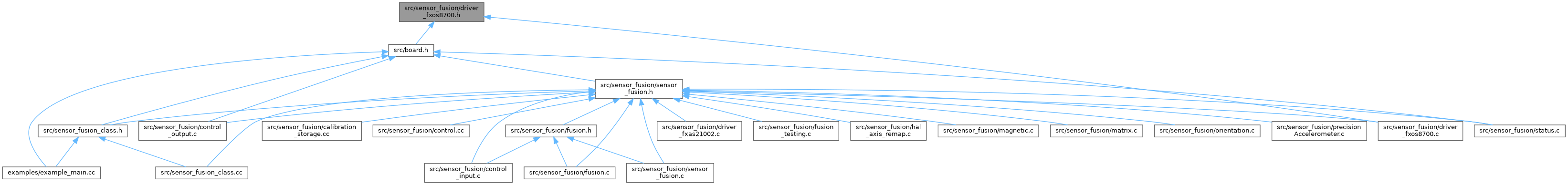

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	fxos8700_i2c_sensorhandle_t
	This defines the sensor specific information for I2C. More...
struct	fxos8700_accelmagdata_t
	This structure defines the fxos8700 raw data buffer. More...
struct	fxos8700_acceldata_t
	This structure defines the fxos8700 raw accel data buffer. More...

Macros
#define	FXOS8700_SPI_MAX_MSG_SIZE   (64)
	The MAX size of SPI message.
#define	FXOS8700_SPI_CMD_LEN   (2)
	The size of the Sensor specific SPI Header.
#define	FXOS8700_SS_ACTIVE_VALUE   SPI_SS_ACTIVE_LOW
	Is the Slave Select Pin Active Low or High.

Functions
int32_t	FXOS8700_I2C_Initialize (fxos8700_i2c_sensorhandle_t *pSensorHandle, uint8_t index, uint16_t sAddress, uint8_t whoAmi)
	The interface function to initialize the sensor.
void	FXOS8700_I2C_SetIdleTask (fxos8700_i2c_sensorhandle_t *pSensorHandle, registeridlefunction_t idleTask, void *userParam)
	: The interface function to set the I2C Idle Task.
int32_t	FXOS8700_I2C_Configure (fxos8700_i2c_sensorhandle_t *pSensorHandle, const registerwritelist_t *pRegWriteList)
	The interface function to configure the sensor.
int32_t	FXOS8700_I2C_ReadData (fxos8700_i2c_sensorhandle_t *pSensorHandle, const registerReadlist_t *pReadList, uint8_t *pBuffer)
	The interface function to read the sensor data.
int32_t	FXOS8700_I2C_Deinit (fxos8700_i2c_sensorhandle_t *pSensorHandle)
	The interface function to De Initialize sensor..

Detailed Description

Describes the fxos8700 driver interface and structures.

Definition in file driver_fxos8700.h.

Macro Definition Documentation

FXOS8700_SPI_CMD_LEN

#define FXOS8700_SPI_CMD_LEN   (2)

The size of the Sensor specific SPI Header.

Definition at line 61 of file driver_fxos8700.h.

FXOS8700_SPI_MAX_MSG_SIZE

#define FXOS8700_SPI_MAX_MSG_SIZE   (64)

The MAX size of SPI message.

Definition at line 57 of file driver_fxos8700.h.

FXOS8700_SS_ACTIVE_VALUE

#define FXOS8700_SS_ACTIVE_VALUE   SPI_SS_ACTIVE_LOW

Is the Slave Select Pin Active Low or High.

Definition at line 65 of file driver_fxos8700.h.

Function Documentation

FXOS8700_I2C_Configure()

int32_t FXOS8700_I2C_Configure	(	fxos8700_i2c_sensorhandle_t *	pSensorHandle,
		const registerwritelist_t *	pRegWriteList
	)

The interface function to configure the sensor.

This function configure the sensor with requested ODR, Range and registers in the regsiter pair array.

Parameters

[in]	pSensorHandle	handle to the sensor.
[in]	pRegWriteList	pointer to the register list. @constraints This can be called any number of times only after FXOS8700_I2C_Initialize(). Application has to ensure that previous instances of these APIs have exited before invocation. @reeentrant No

Returns

FXOS8700_I2C_Configure() returns the status .

FXOS8700_I2C_Deinit()

int32_t FXOS8700_I2C_Deinit

(

fxos8700_i2c_sensorhandle_t *

pSensorHandle

)

The interface function to De Initialize sensor..

This function made sensor in a power safe state and de initialize its handle.

Parameters

[in]

pSensorHandle

handle to the sensor. @constraints This can be called only after FXOS8700_I2C_Initialize(). Application has to ensure that previous instances of these APIs have exited before invocation. @reeentrant No

Returns

FXOS8700_I2C_Deinit() returns the status .

FXOS8700_I2C_Initialize()

int32_t FXOS8700_I2C_Initialize	(	fxos8700_i2c_sensorhandle_t *	pSensorHandle,
		uint8_t	index,
		uint16_t	sAddress,
		uint8_t	whoAmi
	)

The interface function to initialize the sensor.

This function initializes the sensor and sensor handle.

Parameters

[in]	pSensorHandle	handle to the sensor.
[in]	index	the I2C device number.
[in]	sAddress	slave address of the device on the bus.
[in]	whoami	WHO_AM_I value of the device. @constraints This should be the first API to be called. Application has to ensure that previous instances of these APIs have exited before invocation. @reeentrant No

Returns

FXOS8700_I2C_Initialize() returns the status .

FXOS8700_I2C_ReadData()

int32_t FXOS8700_I2C_ReadData	(	fxos8700_i2c_sensorhandle_t *	pSensorHandle,
		const registerReadlist_t *	pReadList,
		uint8_t *	pBuffer
	)

The interface function to read the sensor data.

This function read the sensor data out from the device and returns raw data in a byte stream.

Parameters

[in]	pSensorHandle	handle to the sensor.
[in]	pReadList	pointer to the list of device registers and values to read.
[out]	pBuffer	buffer which holds raw sensor data.This buffer may be back to back databuffer based command read in the list. @constraints This can be called any number of times only after FXOS8700_I2C_Initialize(). Application has to ensure that previous instances of these APIs have exited before invocation. @reeentrant No

Returns

FXOS8700_I2C_ReadData() returns the status .

FXOS8700_I2C_SetIdleTask()

void FXOS8700_I2C_SetIdleTask	(	fxos8700_i2c_sensorhandle_t *	pSensorHandle,
		registeridlefunction_t	idleTask,
		void *	userParam
	)

: The interface function to set the I2C Idle Task.

Parameters

[in]		fxos8700_i2c_sensorhandle_t *pSensorHandle, handle to the sensor handle.
[in]		registeridlefunction_t idleTask, function pointer to the function to execute on I2C Idle Time.
[in]		void *userParam, the pointer to the user idle ftask parameters.

Returns

void. @constraints This can be called any number of times only after FXOS8700_I2C_Initialize(). Application has to ensure that previous instances of these APIs have exited before invocation. @reeentrant No
